OPEN DECK SERIES

Ideal as a commercial workboat. The open deck version has many applications both professionally and for leisure use.

TECHNICAL SPECIFICATION:

Hull length: 6.95 mtrs / 22.8 ft

Hull beam: 2.5 mtrs / 8.2 ft

Keel draft: approx.  325mm / 12.8”

Weight: TBA

Engines: dependent on selection

Performance:  up to 33knots

Fuel capacity: dependent on requirements

CE category: C

Max persons: 8

FEATURES

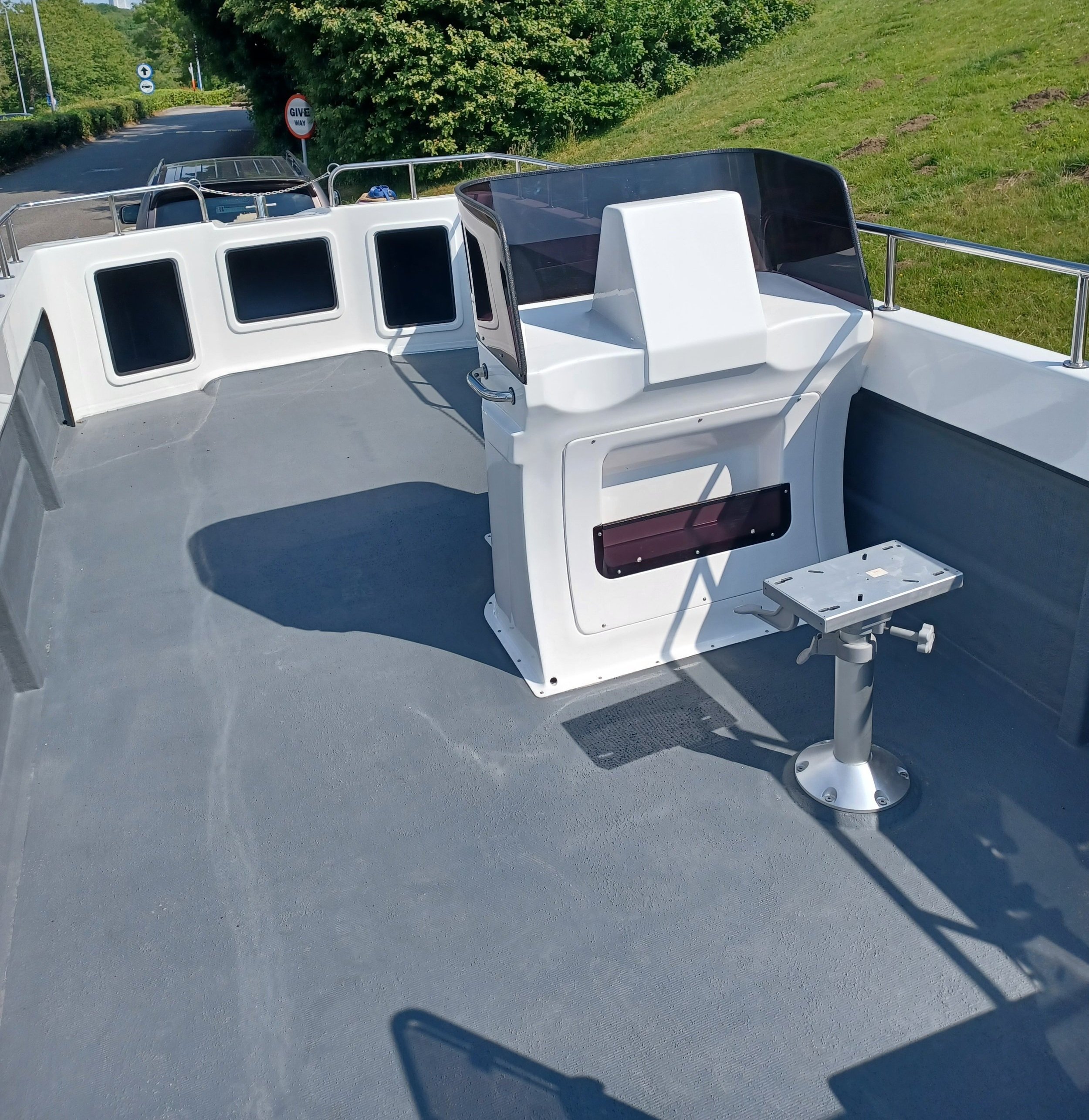

  • This boat has been manufactured with an off-set helm consul which has a protective screen, the helm also has an inset storage area to accommodate charts and personal items. The consul can be located in any position on the large deck depending on the customers’ requirements.

  • The pedestal for the seat is adjustable and the actual seat can be of the customers’ choosing.

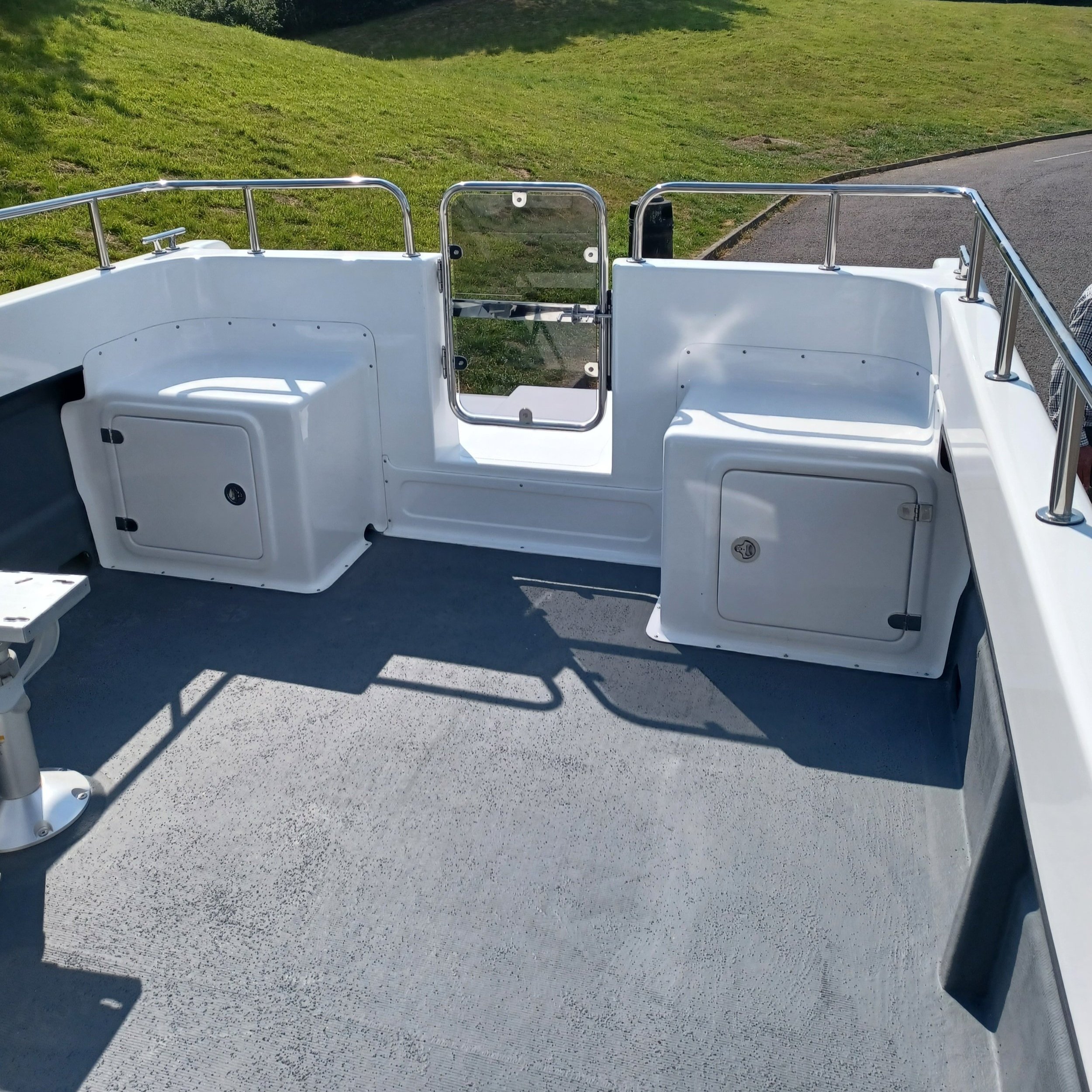

  • The seats either side of the transom gate can also be used as a battery compartment or for storage.

  • The three openings in the bow section are ideal for storage and can easily accommodate a windlass and chain. The lockers can be fitted with doors if required.

  • Additional seats/storage lockers can be provided if required along with any other requirements.

  • Mooring cleats or bollards can be fitted and the handrail design and opening positions can be varied.

  • Whatever your individual needs Manta Marine can satisfy them.

CUSTOMISE YOUR BOAT

Now you’ve decided on a Manta Marine power catamaran and chosen between an Island Cab, Full Cab, or Open Deck, you still have many enjoyable and important decisions to make.

ENGINES

Manta Marine cats are rated for 147kw/100hp x 2 maximum power. This boat will run on a 70/80hp single engine or twin power units.

The Manta Marine hulls are superbly efficient and the transition to planing is smooth and does not require masses of engine power. There would be no problems with lower powered engines from various manufacturers.

EQUIPMENT

Such a large choice of extras are available and these can be specified/supplied at the time of order and fitted during the build or by the customer after purchase.

ELECTRONICS

We recognise that customers have their own preferences for electronic equipment and may wish to perform their own installations. This isn’t a problem at all. Personal preferences such as Raymarine, Garmin, and Simrad are best purchased by the customer and if required we can recommend an expert engineer to advise, supply and install.

TOWING

Designed to be legally towed (vehicle towing weight dependent) by a private car or 4x4 on a public highway. We can supply a fully galvanised road legal trailer as an optional extra. The combination will easily be within the 3500kg legal limit.

FINANCE OPTIONS:

Many boat owners will be looking to finance a substantial purchase. There are a number of reputable marine finance specialists and we may be able to guide you towards a supplier.

SYNDICATE FORMING

An excellent way to purchase a boat and share the running costs. We are keeping a register of prospective purchasers who want to form a syndicate. The information we need is the contact details, intended operating area and the ideal number of syndicate members. We will happily assist with putting prospective owners in contact directly in order to form a  working syndicate.
